Information

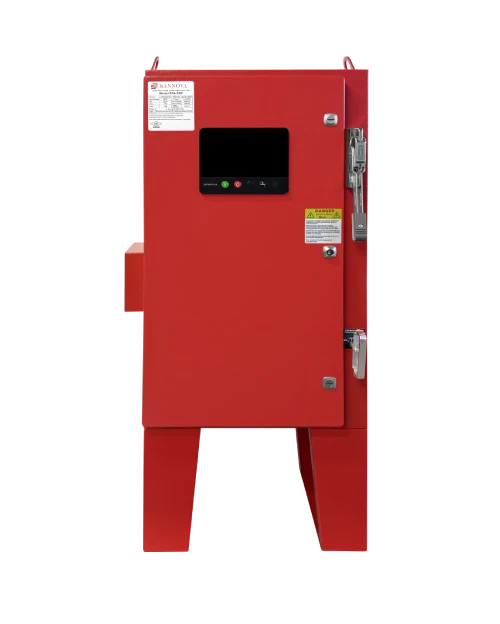

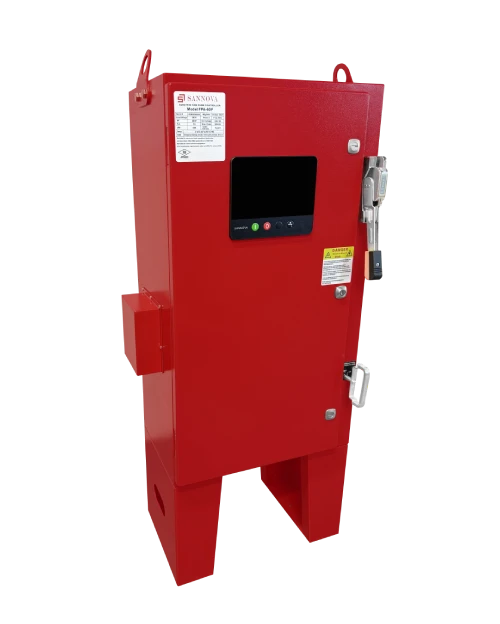

The FPA controller operates Across-The-Line where full voltage is applied to the motor for starting by the use of a single motor contactor. Starting inrush current is approximately 600% of rated full load amperes. The FPA can be programmed for either fully automatic or semiautomatic operation.
Electric Fire Pump Controllers
Designed for use with electric motor driven fire pumps.
Manufactured in accordance with the NFPA 20 standard, UL listed and FM Approved.
7 inch Color Touch Screen Operator Interface
Models range from 200 to 600 volt, 5 to 500 horsepower, 50 / 60 Hz
Standard Features
Surge suppression
Single operator for both isolating switch and circuit breaker
Emergency start handle
Locked rotor protector
Readings
Voltage and amperage display
Cut-in, cut-out and continuous system pressure
Remote Alarms (SPDT-8A)
Power available
Phase reversal
Motor run
Common pump room alarm
Common Motor trouble
Free
Standard, Listings, Approvals and Certifications
Built to NFPA 20
Underwriters Laboratory (UL)
UL218 – Fire pump controllers
UL 1008 – Automatic power transfer switches for fire pump controllers
FM Global – Class 1321/1323
Optional: CE Mark – Various EN, IEC & CEE directives and standards
Certifications
Operator Interface
7” color touch screen
Multi-language
Upgradable software
Enclosure Ratings
Standard: NEMA 2 Assembly
Optional:
NEMA 12
NEMA 3
NEMA 3R
NEMA 4
NEMA 4X-304 sst painted
NEMA 4X-304 sst brushed finish
NEMA 4X-316 sst painted
NEMA 4X-316 sst brushed finish
IP54
IP55
IP65
IP66
Paint Specifications
Red RAL3002 or 3020
Glossy textured finish
Accessories
Bottom entry gland plate
Keylock handle
