Information

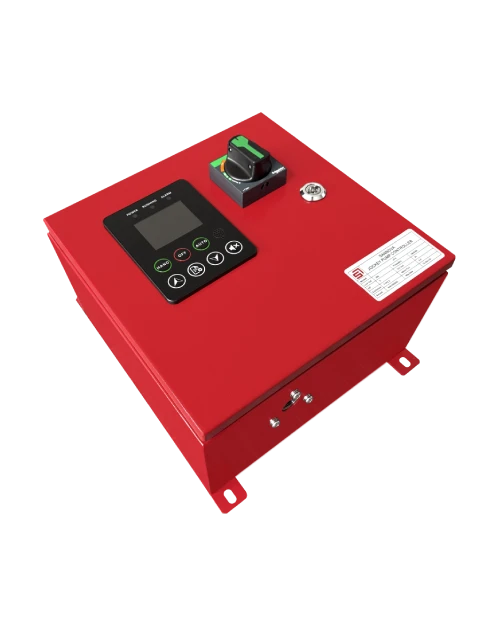

Designed to control jockey pumps which maintain water pressure in fire pump serviced systems.
Prevents unnecessary starting of the fire pump due to small leaks in the sprinkler system piping.
Standard Features
Operator Interface provides
Visual indicators
Manual motor run
Automatic motor run
System pressure
Automatic mode
Off mode
Motor overload
Pump start counter
Elapsed time meter (non-resettable)
All adjustments on door front
Timers
- Minimum run period timer
- Sequential start timer
Operators
- OFF-AUTO pushbutton
- Start and stop pushbuttons.
Pressure transducer
Models JPxxx
- Accepts single power source
- Controls one (1) jockey pump
- JP100 = 120V/1Ph/60Hz
- JP200 = 220V to 240V/1Ph/60Hz
- JP300 = 200V to 600V/3Ph/50-60Hz
- Thermo-magnetic motor protector
- Across the line motor starter
Model JPY
- Accepts single power source
- Controls one (1) jockey pump
- Only available for 200V to 600V/3Ph/50-60Hz (3-phase applications)
- Thermo-magnetic motor protector
- Wye-delta open transition motor starter
Model JPD
Accepts single power source
Controls two (2) pumps as LEAD-STANDBY (full redundancy)
Available for
220V to 240V/1Ph/60Hz
200V to 600V/3Ph/50-60Hz
Automatic alternation
Lead pump selector switch
Thermo-magnetic motor protectors (x2)
Across the line motor starters (x2)
Standard, Listings, Approvals and Certifications
All Models
Built to NFPA 20
UL508A – Industrial Pump Controllers
Optional: CE Mark
Certifications
Enclosure Ratings
Standard: NEMA 2 Assembly
Optional:
NEMA 12
NEMA 3
NEMA 3R
NEMA 4
NEMA 4X-304 sst painted
NEMA 4X-304 sst brushed finish
NEMA 4X-316 sst painted
NEMA 4X-316 sst brushed finish
IP54
IP55
IP65
IP66
Paint Specifications
Red RAL3002 or 3020
Glossy textured finish
